N16-Series

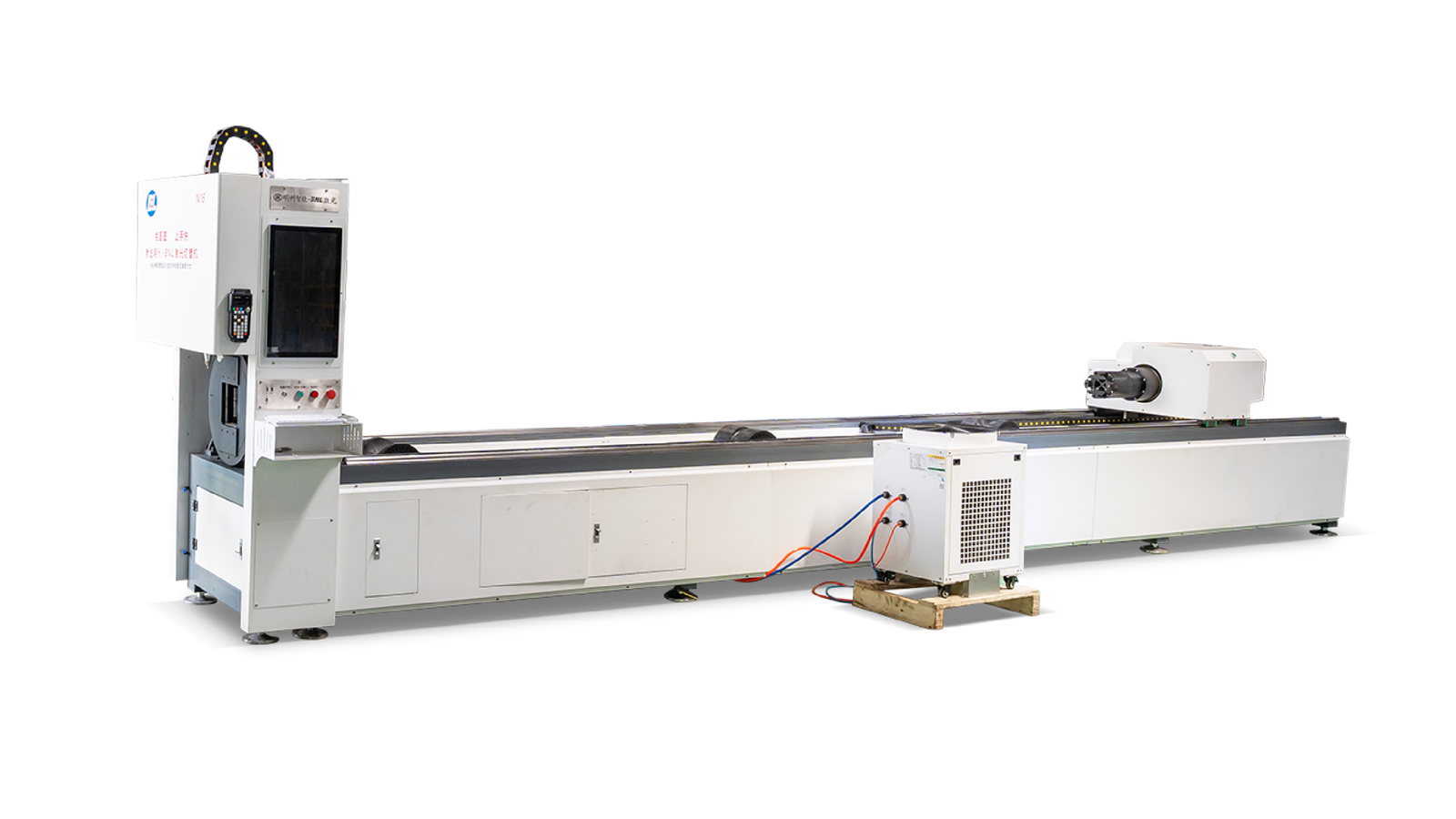

High-Speed 3D Laser Pipe Cutting Machine (Horizontal)
Fast, Precise, Effortless
Advantages and Features
- No-Drawing Pipe Cutting System: Allows regular operators to quickly master the operation without needing traditional 3D drawings for standard pipes and hole shapes.
- Bus Control System: The entire series uses a bus control system with multi-axis linkage, enabling processes like leapfrog and flying cut, improving efficiency by about 30% compared to traditional pulse systems.

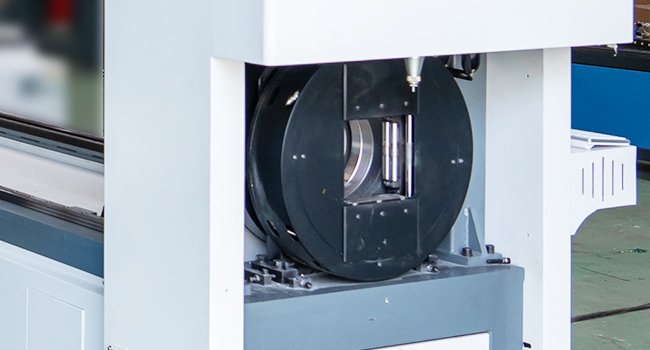

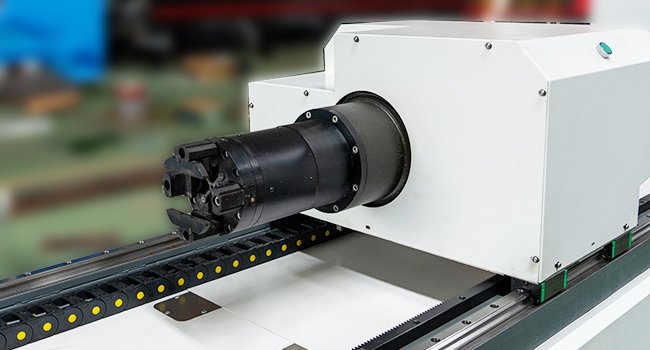

- Full-Stroke Chuck: Automatically centers, allowing multi-material and multi-shape pipes to be clamped without changing fixtures.
- Rear Chuck Auto Air Blow: Prevents jaw jamming, keeping pipe walls cleaner.
- Left/Right Machine Customization: Adaptable to factory layout, facilitating operator handling, saving space and personnel.
- Versatile Cutting Types: Applicable to any pipe, including square pipe, round pipe, oval pipe, channel steel, angle iron, and I-beam.

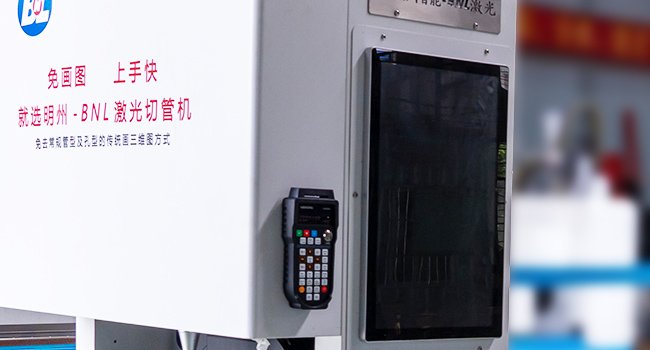

- Multi-Angle Rotating Control Screen: Allows for convenient multi-angle operation.
- This equipment efficiently performs three-dimensional cutting on various types of small to medium-sized pipes, making it a star product in the hardware furniture industry!
Product Details

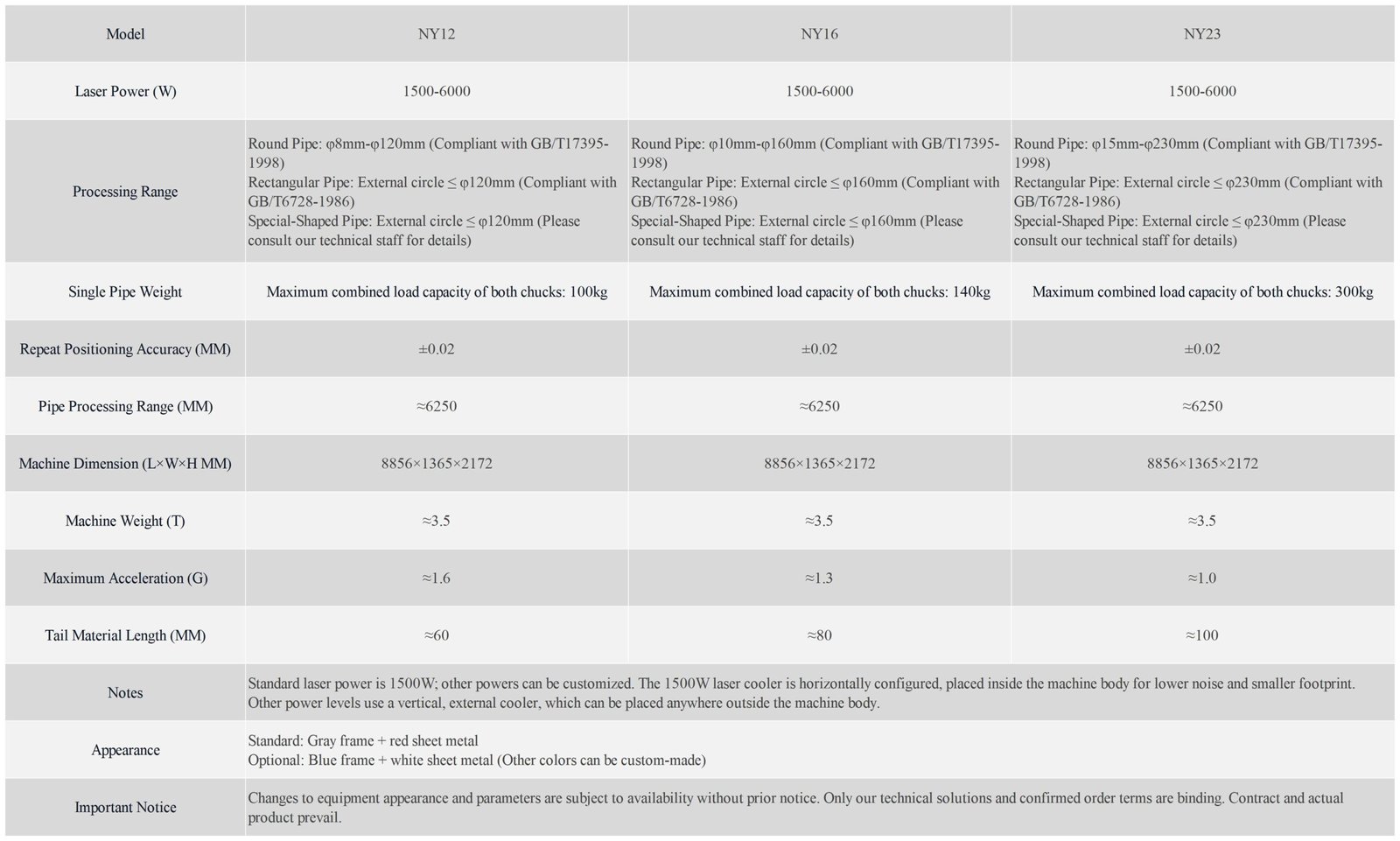

Basic Parameters
Optional Features
1. Loading System (Optional): Stable and fast loading via rack, with three options available—fully automatic, semi-automatic, and manual forward loading systems.

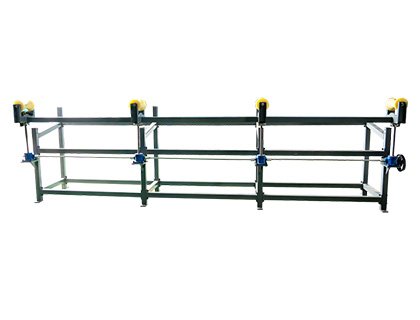

Front Manual In/Out Loading Rack + Main Machine

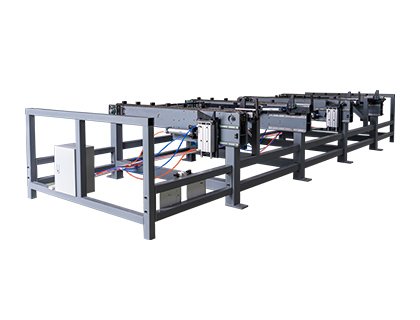

Rear Side Arranged Semi-Automatic Loading Rack + Main Machine
Rear Side Key Striped Semi-Automatic Loading Rack + Main Machine

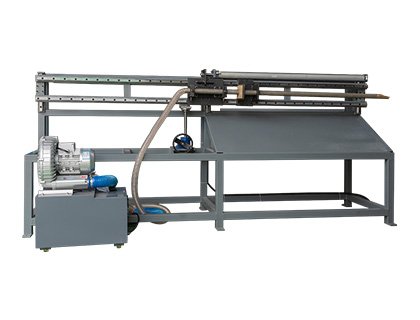

2. Slag Removal System (Optional): Addresses the issue of slag residue on the inner wall of pipes, eliminating the need for secondary vibration polishing.
Suitable for processing needs with high cleanliness requirements for the inner wall of pipes. For pipe diameter ≥ 25mm, use a pure copper slag removal head for increased durability. Different specifications require changing the appropriate slag removal pipe and head.

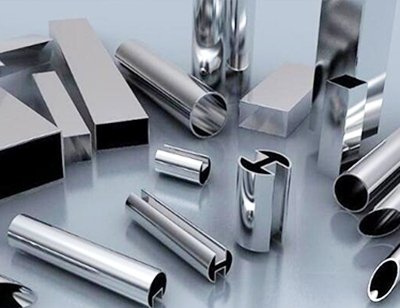

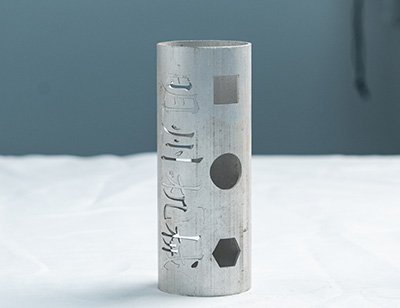

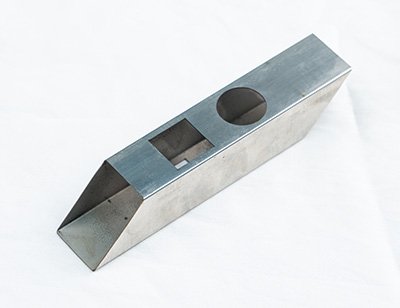

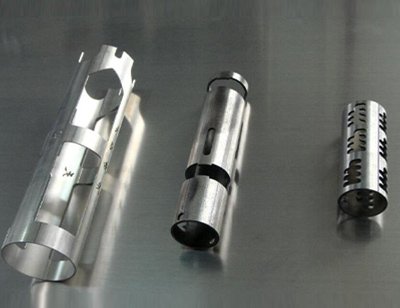

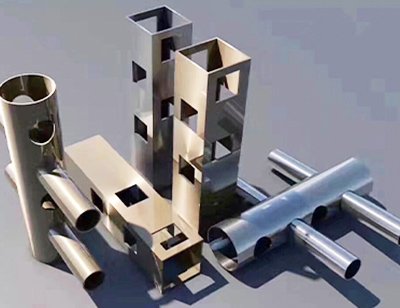

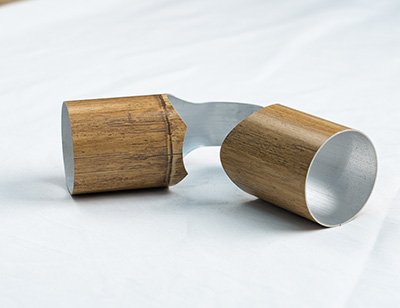

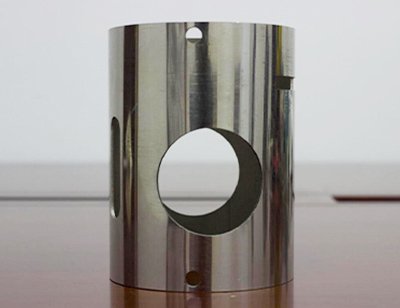

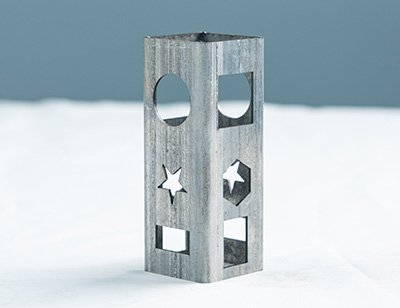

Cutting Samples
