B-High-Speed 3D Laser Pipe Cutting Machine (Side-Mounted)

B-Series

High-Speed 3D Laser Pipe Cutting Machine (Side-Mounted)

Fast, Precise, Effortless

Advantages and Features

Front Chuck Movable Cutting: Reduces tail material to as short as 35MM or achieves "zero" tail design, significantly improving material utilization and saving resources.
Semi-Automatic Key Strip Loading System: Easier and more efficient loading, allowing for 5-12 pipes to be loaded at once.
No-Drawing Pipe Cutting System: Regular operators can quickly get started without the need for traditional 3D drawing for standard pipes and hole types.
Bus Control System: The entire series uses a bus control system with multi-axis linkage, allowing for processes like leapfrog and flying cut, improving efficiency by about 30% compared to traditional pulse systems.

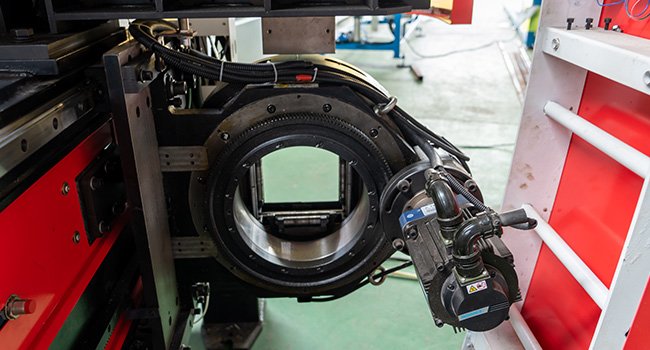

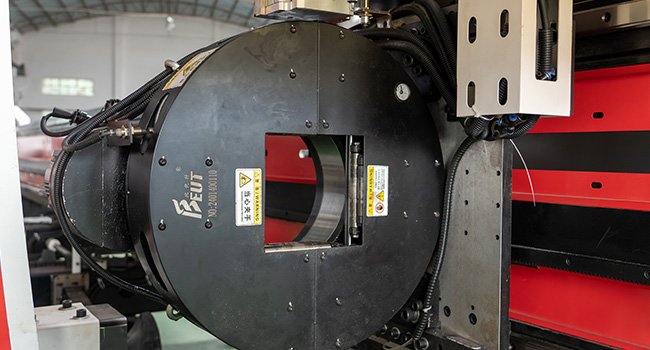

Full-Stroke Chuck: Automatically centers, and accommodates multi-material and multi-shape pipes without needing fixture changes.
Rear Chuck Auto Air Blow: Prevents jaw jamming, keeping pipe walls cleaner.
Left/Right Machine Customization: Adapts to factory layout, facilitating operator handling, saving space and manpower.
Versatile Cutting Types: Compatible with any pipe, including square pipe, round pipe, oval pipe, channel steel, angle iron, and I-beam.
This equipment efficiently performs 3D cutting on various types of small to medium-sized pipes, making it a star product in the hardware furniture industry!

Product Details

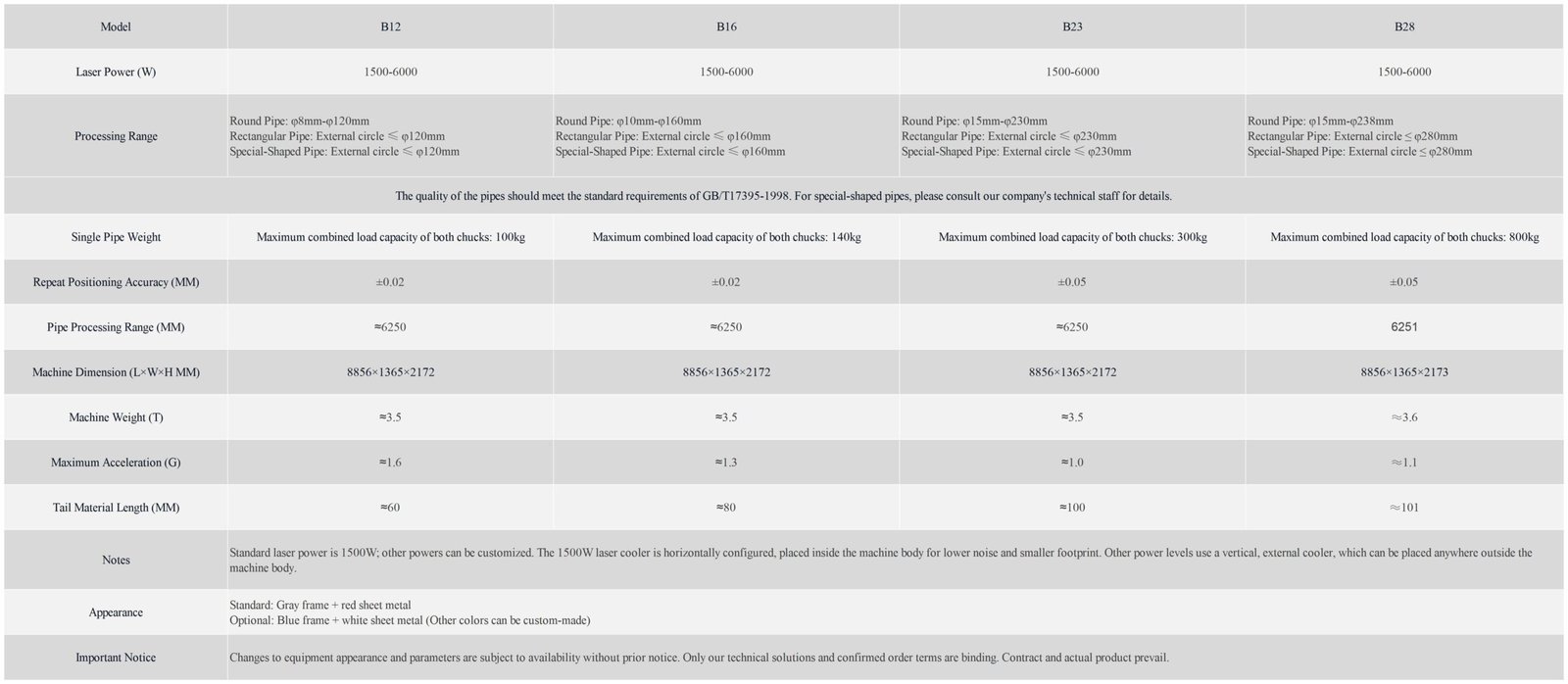

Basic Parameters

Optional Features

1. Loading System (Optional): Stable and fast loading via rack, with three options available—fully automatic, semi-automatic, and manual forward loading systems.

Front Manual In/Out Loading Rack + Main Machine

Rear Side Arranged Semi-Automatic Loading Rack + Main Machine

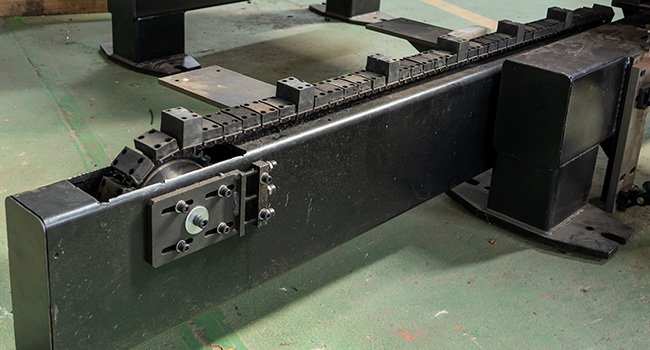

Rear Side Key Striped Semi-Automatic Loading Rack + Main Machine

2. Slag Removal System (Optional): Addresses the issue of slag residue on the inner wall of pipes, eliminating the need for secondary vibration polishing.

Suitable for processing needs with high cleanliness requirements for the inner wall of pipes. For pipe diameter ≥ 25mm, use a pure copper slag removal head for increased durability. Different specifications require changing the appropriate slag removal pipe and head.
